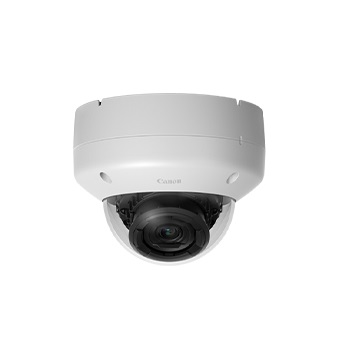

VB-H652LVE

Full HD dome camera with an ultra-wide 122.1° field of view, bright f/1.2-1.8 lens, IK10 and IP66 vandal- and weather-resistance, plus built-in infrared LEDs for detailed mono image capture up to 20m away.

VB-H652LVE

Prednosti

    • See more of the scene with the VB-H652LVE's ultra wide-angle lens
    • Vandal-resistant, weather-resistant, and NEMA250 Type 4X compliance for extensive protection against the elements
    • Built-in infrared LEDs for around-the-clock monitoring
    • Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) maintain video quality while reducing bandwidth usage
    • On-board analytics functions for advanced alarm detection
    • Live monitoring and configuration on supported web browsers and mobile devices
    • Supports ONVIF® Profile S and Profile G

Detaljne karakteristike

Detaljnije pogledajte Canon VB-H652LVE

Sharp, wide-angle images in Full HD


Get a more complete view with the VB-H652LVE's 122.1° wide-angle field of view and sensitive 1/3" CMOS sensor, producing Full HD-resolution images using the camera's bright f/1.2-1.8 lens. The aspherical lens elements and Super UD-distortion suppression help prevent chromatic aberration and achieve even crisper images under any lighting conditions. To improve bandwidth requirements and optimise image quality, Motion Adaptive Noise Reduction dynamically controls noise reduction levels when detecting moving objects or low-light noise.

Infrared LEDs for high-quality images even in darkness


Surveillance can continue around the clock, from bright daylight to virtual darkness. In low-light, the VB-H652LVE's f/1.2-1.8 2.4x optical zoom lens captures outstanding levels of detail, and in extreme low-light conditions the built-in infrared LEDs provide a clear, focused view of subjects up to 20m away.

Built to beat the elements


The VB-H652LVE is built to last. Both vandal- and weather-resistant, it is ingress rated to IP66 and certified for IK10 impact resistance. Its design and construction also comply with NEMA250 Type 4X and IEC 60950-1/22 standards to provide reliable operation in extreme temperatures, from -40°C (using the optional heater) up to 55°C.

Content-aware alarm detection


With on-board Video Content Analytics profiles, operators can conduct surveillance tasks efficiently and effectively. Intelligent analytics provide multiple virtual alarm detection functions, actively alerting operators to suspicious behaviour while helping to minimise storage and bandwidth re

Specifikacije proizvoda

Saznajte više o Canon VB-H652LVE, njegovim karakteristikama i mogućnostima.

Digic DV III

Upravljanje kvalitetom slike i kontrola

DIGIC NET II

Efikasna mrežna obrada

Optical 2.4x Zoom

Veoma kvalitetno optičko uvećanje

Horizontal view angle 122.1 degree

Širok ugao gledanja

Full HD

Full HD rezolucija

All weather Model

Poboljšana zaštita od vremenskih uslova

Infrared Illumination

Ugrađeni izvor svetla

Auto SSC

Automatska inteligentna kontrola senki

Intelligent Function

Analiza video sadržaja

Simple Camera Setting

Podešavanje jednim klikom

Digital PTZ

Virtuelna PTZ funkcija

IK10

Sertifikovana zaštita od vandalizma

Weatherproof

Otpornost na vremenske uslove

AC DC PoE

Više opcija za napajanje

PoE plus

Napajanje preko Ethernet mreže

microSD

Lokalno snimanje

  • Glavna jedinica VB-H652LVE
  • CD-ROM za podešavanje
  • Ploča za plafon
  • Sigurnosna žica
  • Zavrtanj za fiksiranje sigurnosne žice
  • Ključ
  • Šablon
  • Konektor za napajanje
  • Kabl audio interfejsa
  • Vodič za instaliranje
  • Garantna knjižica
  • Garantni list
